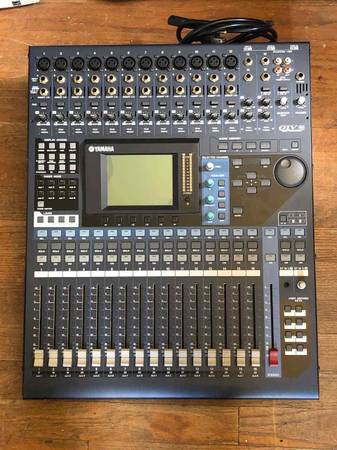

Yamaha Digital Mixer 01V96VCM 40-input 18-bus 24-bit / 96-kHz - $500 (Westchester Putnam County)
QR Code Link to This Post
Am occasionally in the Catskills, near Kingston, Woodstock, High Falls, New Paltz
Could possibly meet in NYC / Manhattan at times as well, please just ask
Price Drop . . . Just this week . . .
VERY clean, good working unit . . .

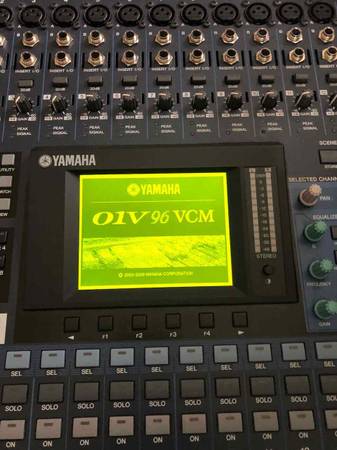

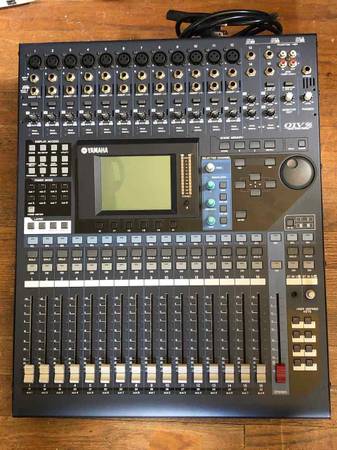

Yamaha Digital Mixer
01V96VCM Version (V2 plus more)
40-input 18-bus
24-bit / 96-kHz Audio
Flying Faders Multiple Effects
ADAT interface
. . . More
More info;
Yamaha 01V96Specs
Total # Of Inputs
24 Inputs (Expandable up to 40)
Mic/Line Inputs
12 x Balanced XLR & Balanced 1/4" TRS
4 x Balanced 1/4" TRS
1 x Stereo RCA 2TR
Main/Monitor Out
2 x Balanced XLR
2 x Balanced 1/4" TRS
AUX Sends
4 x 1/4" Sends
6 Internal AUX Sends (Automatically routed to the 2 internal DSP effects processors)
AUX Returns
Returns permitted through any input channel (1-16)
Optional I/O card inputs can be used as external AUX returns
Internal AUX Returns are also pre-routed and accessible via fader control
Inserts
12 x Unbalanced 1/4" TRS (on channels 1 through 12)
Digital I/O Options
Optical ADAT In, 24bit
Optical ADAT Out, 24bit
2 Trk Master I/O
2 x Balanced XLR Stereo
Stereo RCA
Stereo Digital I/O
2TR In Digital RCA (Consumer use IEC-60958)
2TR Out Digital RCA (Consumer use IEC-60958)
Word Clock I/O
BNC Connectors (TTL/75ohms)
MIDI Ports
In, Out, and Thru
MIDI In can be used as Time Code In MTC
EQ Section
4 band parametric EQ on inputs 1-16, effects returns, AUX sends and stereo output
2-band parametric EQ on inputs 17-24
4 band EQ = 20Hz -20kHz, 1/12 octave, Q range 0.1 - 10.
High and low EQ bands can be configured as shelving or peaking, with the high band capable of being configured as LPF, and the low band as HPF.
EQ gain settings range from -18 to +18dB
EQ settings can also be copied between channels via the equalizer library
Trim/Gain Range
INPUT (1-12): PAD (0/26), GAIN (-16dB to -50dB)
INPUT (13-14): GAIN (+10dB to -20dB)
INPUT (15-16): GAIN (+10dB to -20dB)
Solo/Mute
PFL/AFL soloing
Muting available on input channels
Channel Level Control
17 x 100mm Motorized Faders
Phantom Power
+48V phantom power on all 12 mic inputs
Metering
LCD: 320 x 80 dots, Graphic LCD w/back-light and contrast control pot; LEDs: ST OUT meter, 12 elements x 2, SOLO mode LED
Internal Signal Processing
32bit (Accumulator 58bit)
Sampling Frequency
Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
External: Normal Rate = 44.1kHz-10%-48kHz+6%
Double Rate = 88.2kHz-10%-96kHz+6%
Memory
Scene:99
EQ: 80 (40 preset, 40 user)
Effects: 99 (42 preset, 57 user)
Dynamics: 80 (40 preset, 40 user)
AD/DA Conversion
24-bit 96kHz
Frequency Response
Channel Input to Stereo Output
0.5, -1.5dB, 20Hz - 20kHz at +4dB into 600 ohms
(At a sampling frequency of 48kHz)
0.5, -1.5dB, 20Hz - 40kHz at +4dB into 600 ohms
(At a sampling frequency of 96kHz)
Total Harmonic Distortion (THD)
Measured with a 6dB/Octave filter @ 80kHz:
Channel Input to Stereo Output
Less than 0.05%, 20Hz to 20kHz at +14dB into 600 ohms
(At a sampling frequency of 48kHz)
Less than 0.05%, 20Hz to 40kHz at +14dB into 600 ohms
Less than 0.01%, 1kHz at +24dB into 600 ohms
(At a sampling frequency of 96kHz)
Signal-to-Noise Ratio
110dB typ. DA Converter (Stereo Out)
106dB typ. AD+DA (to Stereo Out)@fs=48kHz
106dB typ. AD+DA (to Stereo Out)@fs=96kHz
Power
AC120V, 60Hz, 90W
Dimensions
17.2 x 5.9 x 21.3" (436 x 150 x 548mm) W x H x D
Weight
33.1 lbs (15 kg)
